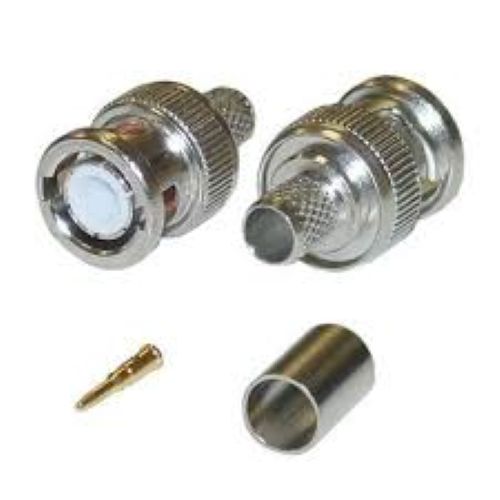

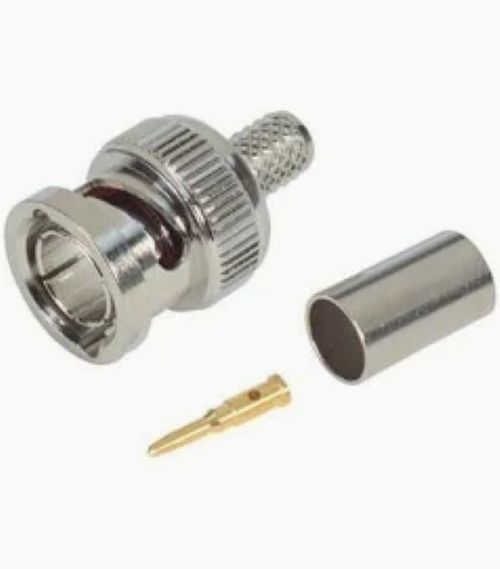

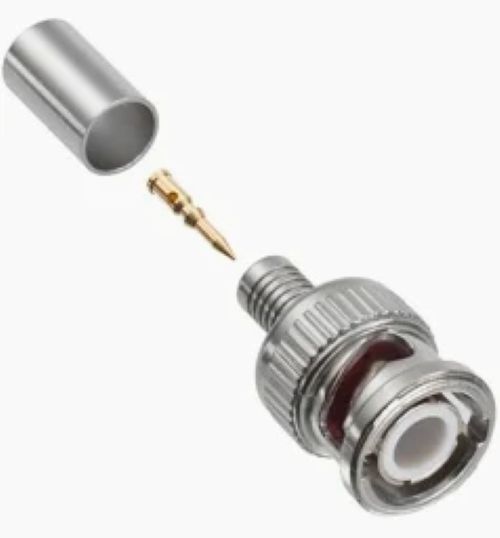

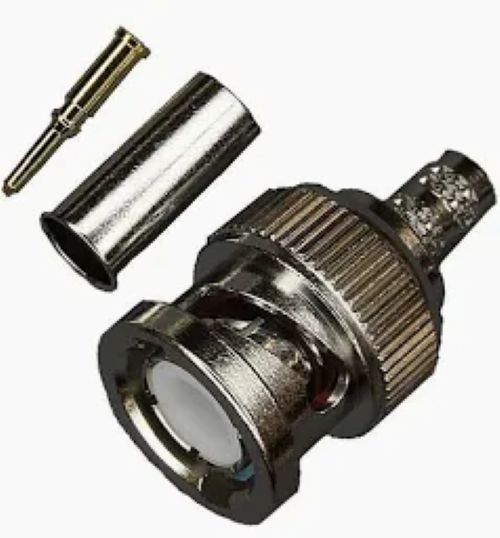

BNC Connector Crimp Type RG 59

Name: BNC Connector Crimp Type RG 59
Brand: CHERRY CONNECTRONICS
Price: 40.0 INR
Availability: InStock

Price 40.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

BNC Connector Crimp Type RG 59 Specification

Impedance
75 Ohms

Locking Type
Bayonet

Rated Temperature
-20C to +60C

Insulation
PE (Polyethylene)

Diameter
Approx. 14mm

Conductor Shape
Round pin

Number of Conductor
1

Install Type
Crimp

Conductor Type
Solid or stranded (cable dependent)

Operating Temperature
-20C to +60C

Cable Type
RG59 Coaxial Cable

Features
Easy crimping installation, Secure connection, Reliable signal transmission, Durable construction, Nickel plated finish for corrosion resistance

Core Material
Brass (pin)

Usage & Applications
Security systems, Broadcasting, Communication systems

Dielectiric Strength
1000V AC/1min

Core Number
1

Weight
~12g

Product Type
BNC Connector Crimp Type for RG59 cable

Length
Standard for connector - NA (cable dependent)

Voltage
500V (rms) max

Insulation Material
Polyethylene (PE)

Application
CCTV, video surveillance, broadcast, audio/video equipment, test instruments

Conductor Material
Brass (center pin)

Jacket Material
PVC (Polyvinyl Chloride) for external cable (not part of connector)

Storage Temperature
-40C to +70C

Connector Color
Silver

Shield Material
Brass with nickel plating

Jacket Color
NA (depends on cable used)

Dimension (L*W*H)
Approx. 35mm (L) x 14mm (Diameter)

Material
Nickel-plated brass, PE

Color
Silver

Size
Standard BNC for RG59

Insertion Loss
0.2dB @1GHz

Contact Resistance
Center contact 1.5 m, outer contact 1 m

Withstanding Voltage
1500V AC (rms) 1 min

VSWR
1.3 (at DC to 1 GHz)

Connector Gender
Male

Frequency Range
DC to 4 GHz

Surface Finish
Nickel plated over brass

RoHS Compliance
Yes

Max Cable OD Supported
Up to 6.2mm

Attachment Method
Crimp type for center pin and outer ferrule

About BNC Connector Crimp Type RG 59

BNC connector crimp type for rg 59,58 174 with gold pin.A BNC crimp-type connector for RG59 coaxial cables is a professional, multi-piece RF connector used extensively to attach analog HD video signals to CCTV security cameras, DVRs, test instruments, and studio broadcasting gear. Unlike twist-on alternatives, a crimped termination uses a mechanical crimping tool to permanently squeeze a metal ferrule over the cable's copper shielding, ensuring the most stable, vibration-resistant, and durable connection possible. [1, 2, 3, 4]

Effortless and Secure Installation

This BNC connector employs a crimp-type attachment for both the center pin and outer ferrule, providing an easy, tool-assisted installation. The bayonet locking mechanism ensures a secure and stable connection, minimizing signal loss and offering peace of mind for installers managing multiple connections in professional settings.

Exceptional Performance and Reliability

Capable of handling frequencies up to 4 GHz with a low VSWR (1.3 at DC to 1 GHz) and minimal insertion loss (0.2dB at 1GHz), this connector ensures clear and reliable signal transmission. The 75 Ohm impedance and high-voltage tolerance make it ideal for demanding video and communication system applications.

Durable Construction and Versatile Application

Built with nickel-plated brass and PE insulation, the connector excels in both protection against corrosion and long-term durability. Its compatibility with RG59 coaxial cables and RoHS compliance make it suitable for diverse environments including security, broadcasting, and laboratory test instruments.

FAQ's of BNC Connector Crimp Type RG 59:

Q: How do I install the BNC Connector Crimp Type RG 59 onto coaxial cable?

A: To install, strip the RG59 cable to expose the center conductor and outer shield. Attach the center pin to the conductor and crimp it securely. Position the cable into the connector, slide the ferrule over the braid, and crimp both the pin and ferrule. This ensures a secure and reliable connection suitable for CCTV and broadcast uses.

Q: What types of applications are best suited for this BNC connector?

A: This BNC connector is designed for CCTV, video surveillance, broadcasting, audio/video equipment, communication systems, and test instruments. Its robust signal performance and reliable construction make it ideal for professional security installations and high-frequency video transmission.

Q: When should I use a crimp-type BNC connector instead of a solder type?

A: Crimp-type BNC connectors are preferred for faster, consistent, and tool-assisted installations, especially when multiple connections are required or field work demands rapid deployment. They provide reliable performance without the need for soldering, making them suitable for large-scale security or broadcast system setups.

Q: Where can I use the BNC Crimp Type RG 59 in my system?

A: You can use this connector wherever an RG59 coaxial cable is required, typically in CCTV cameras, DVRs, broadcasting equipment, and audio-video distribution systems. The connector's standard bayonet locking ensures stable connections in both indoor and outdoor environments (with proper cable selection).

Q: What are the benefits of the nickel-plated brass construction?

A: Nickel plating over brass provides excellent corrosion resistance, enhancing the connector's longevity in challenging environments. It also ensures electrical conductivity and durability, critical for maintaining stable signal transmission in security and broadcast systems.

Q: How does this BNC connector support reliable signal transmission?

A: With a low contact resistance, minimal insertion loss (0.2dB at 1GHz), VSWR of 1.3 (at DC to 1 GHz), and maintenance of 75 Ohms impedance, this connector ensures high-quality, distortion-free signal transmission essential for professional video and communication systems.
