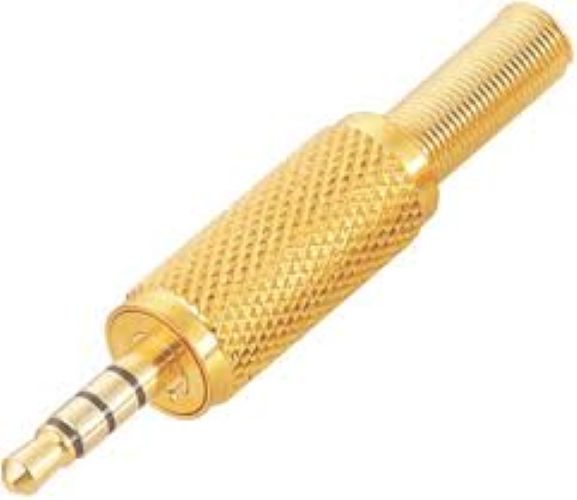

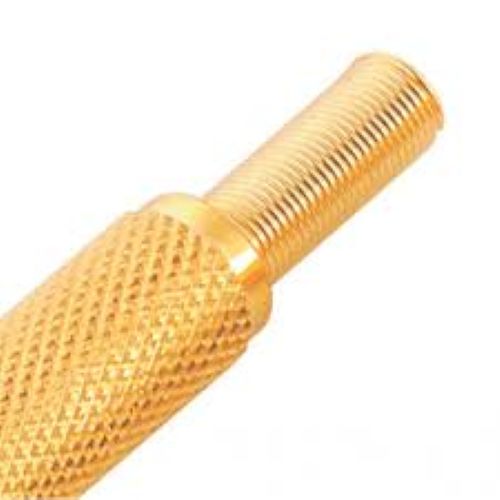

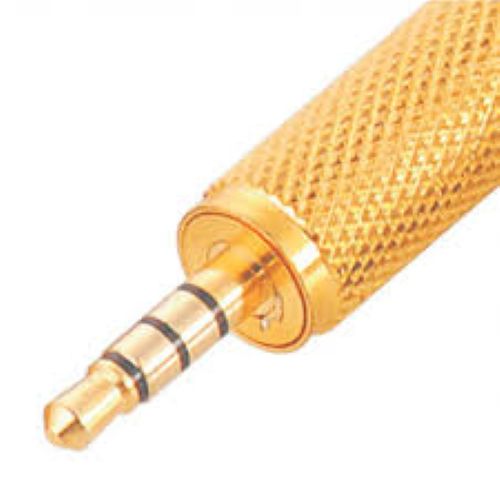

4 Pole Stereo Connector Gold Plated

Name: 4 Pole Stereo Connector Gold Plated
Brand: CHERRY CONNECTRONICS
Price: 190.0 INR
Availability: InStock

Price 190.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

4 Pole Stereo Connector Gold Plated Specification

Conductor Shape
Round pin type

Locking Type
Not locking

Cable Type
Connector only; cable not included

Conductor Type
Solid core

Rated Temperature
-10C to +60C

Core Material
Copper

Features
4-pole connection, gold plated contacts, enhanced signal conductivity, corrosion resistant, robust construction, slip-resistant grip

Install Type
Manual soldering to cable

Impedance
Approx. 32 Ohms (typical for audio connections)

Number of Conductor
4 (Tip, Ring1, Ring2, Sleeve)

Core Number
1 (with 4 insulated contacts)

Weight
Approx. 12g per connector

Operating Temperature
-10C to +60C

Insulation
PVC inner insulation

Usage & Applications
Audio/video transmission, microphones, camcorders, smartphones, professional audio equipment

Diameter
~10mm

Product Type
4 Pole Stereo Connector

Length
Standard - approximately 4.5 cm overall

Voltage
Low voltage signal (typically up to 12V for audio/video)

Insulation Material
PVC insulation (internal)

Application
Stereo audio, video, headsets with microphone, multimedia devices

Conductor Material
Copper (core), gold plated

Jacket Material
Metal alloy with gold plating

Storage Temperature
-20C to +70C

Connector Color
Gold

Shield Material
Metal housing

Jacket Color
Gold

Dimension (L*W*H)
~45mm x 10mm x 10mm

Material
Copper, gold plating, PVC insulation

Color
Gold

Size
Standard stereo connector size

Contact Resistance
30 m

Insertion Force
3~20N

RoHS Compliant
Yes

Mounting Type
Free cable mounting (solder type)

Durability
>5,000 mating cycles

Compatibility
3.5 mm jack (TRRS, 4-pole)

Surface Finish
Gold plated (24K, typical commercial grade)

Humidity Range
0-95% RH (non-condensing)

About 4 Pole Stereo Connector Gold Plated

stereo plug Connector is 24K Gold plated.

stereo plug also transfers High quality video signal.

stereo plug has 24k gold plated MX connector Provide corrosion resistance.

stereo plug has spring at the end of connector.

stereo plug is Compact in size.

Built for Enduring Performance

Experience robust construction with this 4-pole stereo connector, supporting over 5,000 mating cycles and designed for frequent handling. Its durable gold-plated copper contacts reduce signal loss and resist corrosion, ensuring longevity even in challenging environments. The connector's slip-resistant grip and metal alloy housing enhance user confidence and protection during installation and everyday usage.

Exceptional Signal Integrity

The 24K gold plating not only delivers an attractive finish but also boosts conductivity and minimizes contact resistance. With a typical impedance of 32 ohms and careful insulation using PVC material, the connector maintains top-quality audio and video signals. Ideal for multimedia devices, camcorders, and headsets with microphones, it ensures clarity and fidelity in transmission.

Flexible and Versatile Installation

This connector is designed for free cable mounting via manual soldering, making it adaptable to a variety of custom cables and setups. Compatible with standard 3.5mm TRRS sockets, it accommodates a range of applications from smartphones to professional audio gear. Whether you are manufacturing, repairing, or upgrading equipment, this connector offers straightforward, reliable integration.

FAQ's of 4 Pole Stereo Connector Gold Plated:

Q: How do I install the 4 Pole Stereo Connector Gold Plated onto my cable?

A: Installation requires manual soldering of each wire to the respective insulated contacts (Tip, Ring1, Ring2, Sleeve) inside the connector. Ensure you use proper soldering techniques to attach the wires securely for optimal signal transmission.

Q: What types of devices are compatible with this connector?

A: This connector is compatible with any device featuring a 3.5mm TRRS (4-pole) jack, including stereo audio and video equipment, microphones, smartphones, camcorders, and multimedia devices.

Q: Where is this connector typically used?

A: You will commonly find this connector used in audio/video transmission lines, headset assemblies with microphones, professional audio setups, and multimedia device manufacturing or repairs.

Q: What are the advantages of gold plated contacts for this connector?

A: Gold plating improves electrical conductivity, resists corrosion, and ensures low contact resistance. This results in enhanced audio and video signal quality and extends the lifespan of the connector.

Q: What is the typical lifespan of this connector in terms of usage cycles?

A: The connector is rated for more than 5,000 mating cycles, allowing for long-term use in both consumer and professional environments without rapid wear.

Q: When should I consider using a 4-pole connector instead of a standard 3-pole connector?

A: Use a 4-pole connector when you need to transmit stereo audio along with a microphone signal or composite video, as it provides an extra contact for additional functionality compared to 3-pole connectors.
