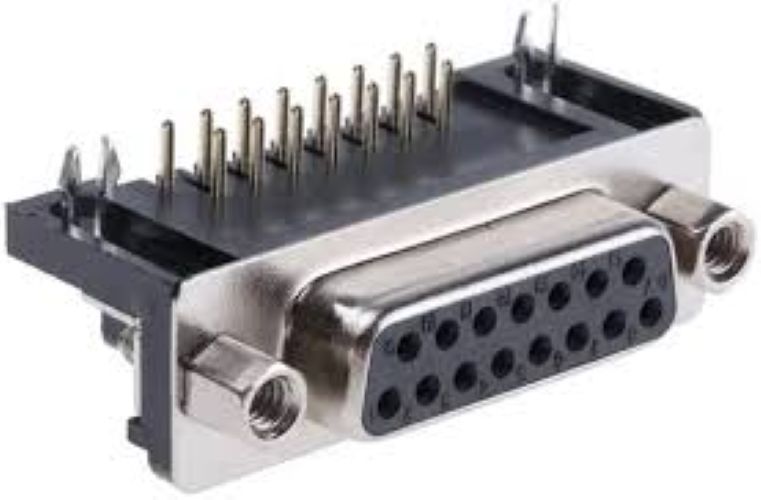

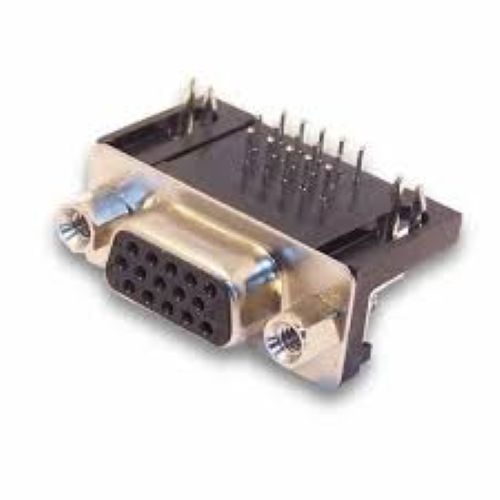

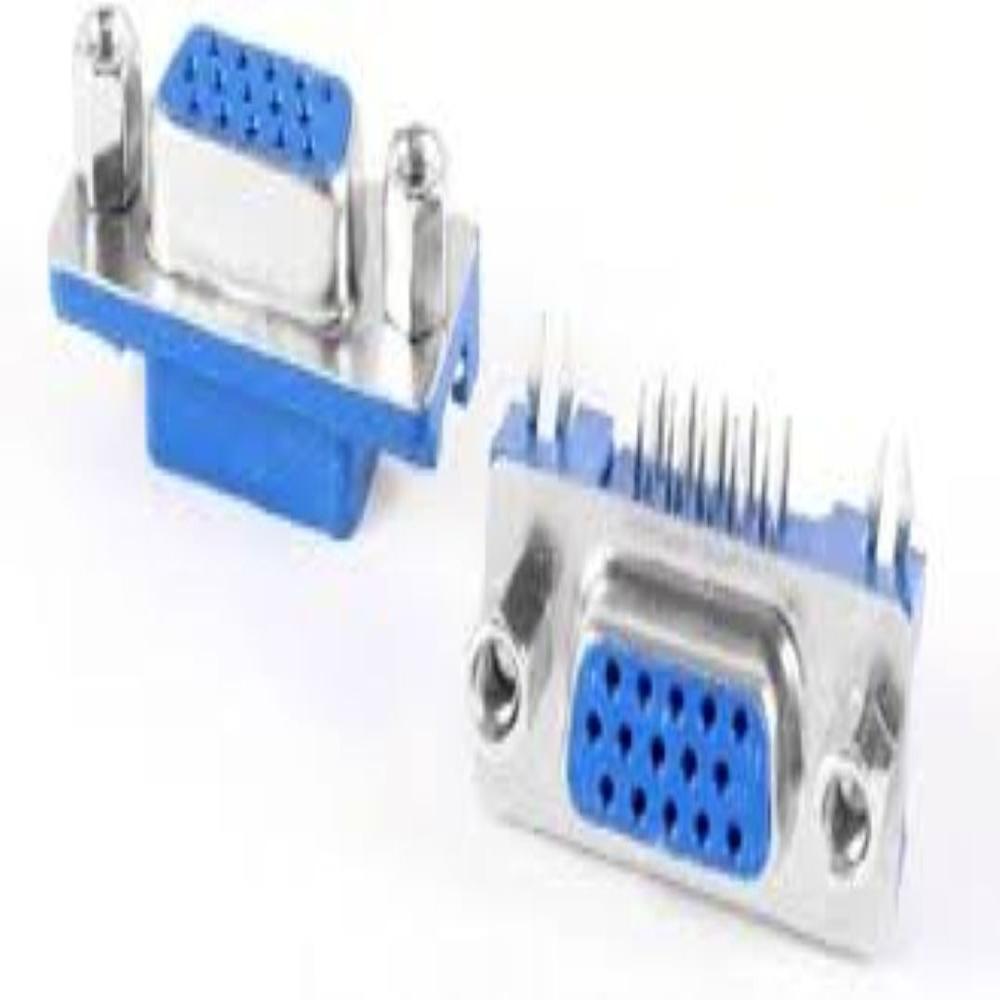

VGA Female PCB Mount Right Angle , Number of Pins: 15

Name: VGA Female PCB Mount Right Angle , Number of Pins: 15
Brand: CHERRY CONNECTRONICS
Price: 20.0 INR
Availability: InStock

Price 20.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VGA Female PCB Mount Right Angle , Number of Pins: 15 Specification

Conductor Shape
Round Pin

Insulation
High dielectric strength thermoplastic

Dielectiric Strength
1000V AC for 1 minute

Features
Right Angle, PCB Mount, 15 Pin, Female, Solder Type, Compact Design

Diameter
Standard pin spacing 2.77 mm

Number of Conductor
15

Cable Type
Not Applicable - PCB Mount

Install Type
Solder to PCB, Through-Hole Mount

Tensile Strength
Standard electronic grade

Conductor Type
Solid

Operating Temperature
-55C to +105C

Weight
Approx. 6 grams

Impedance
Not specified (VGA standard: 75 Ohm typical)

Locking Type
Thumbscrew Fasteners

Usage & Applications
Computer monitors, PC motherboards, graphic cards, industrial equipment interfaces

Rated Temperature
-55C to +105C

Product Type
VGA Female PCB Mount Right Angle Connector

Length
Standard for PCB Mount, approx. 30 mm

Voltage
250V AC max

Insulation Material
Thermoplastic (Blue)

Application
VGA Video Connections, Computer Monitors, Graphic Cards, Projectors, Embedded Systems

Conductor Material
Copper Alloy, Tin-Plated

Jacket Material
Not Applicable (PCB Mount Connector)

Storage Temperature
-40C to +85C

Connector Color
Blue

Shield Material
Nickel-plated Steel

Dimension (L*W*H)
Approx. 30 x 16 x 13 mm

Material
Thermoplastic + Metal Shell

Color
Blue & Silver

Size
DB15 (Standard VGA size)

Contact Material
Copper Alloy

Shell Plating
Nickel Plated

Pin Pitch
2.77 mm

Mating Cycles
500 cycles

Contact Resistance
15 m max

Current Rating
5A max per pin

Termination Style
Solder Type

Mounting Type
PCB Mount, Right Angle

Pin Plating
Tin over Nickel

Environmental Compliant
RoHS Compliant

Mounting Style
Right Angle Through-Hole

Gender
Female

Insulation Resistance
1000 M min at 500 VDC

Flammability
UL94V-0 compliant

About VGA Female PCB Mount Right Angle , Number of Pins: 15

Vga female pcb mount used to manufacture vga products.A VGA Female PCB Mount Right Angle Connector (internally classified as a High-Density HD15 or DB15 three-row D-Sub connector) is a specialized video receptacle engineered to sit horizontally on a printed circuit board. This 90-degree layout allows standard VGA cords to plug directly into the edge of a devicesuch as computer motherboards, custom media players, video scalers, or industrial control panelswithout adding vertical height or straining the PCB traces.

Robust Build for Secure Video Connections

Built with nickel-plated steel shells and copper alloy conductors, this VGA connector ensures optimal electrical performance and durability for consistent video quality. Its high-grade thermoplastic insulation offers excellent dielectric strength, supporting both safety and reliability in demanding electronic environments.

Easy Installation and Versatile Applications

Designed for right-angle, through-hole PCB mounting, this connector supports efficient soldering and stable attachment on motherboards, graphic cards, and embedded platforms. Whether for new system builds or repair of existing equipment, it provides flexible integration into various industrial and commercial scenarios.

FAQ's of VGA Female PCB Mount Right Angle , Number of Pins: 15:

Q: How do I mount the VGA Female PCB Right Angle Connector to a PCB?

A: This connector is intended for right-angle, through-hole soldering. Align the pins with the PCB holes, insert fully, and solder each pin on the reverse side to secure and establish electrical connections.

Q: What devices and applications use this 15-pin VGA PCB connector?

A: It is commonly used in computer monitors, graphic cards, PC motherboards, projectors, embedded systems, and industrial equipment interfaces requiring VGA signal transmission.

Q: What benefits does the nickel-plated shell and tin-plated pins provide?

A: The nickel-plated shell improves EMI shielding and corrosion resistance, while tin over nickel pin plating enhances conductivity and supports reliable signal transfer over repeated mating cycles.

Q: What is the maximum current rating and voltage supported by this connector?

A: Each pin can handle up to 5A, with a maximum voltage rating of 250V AC, facilitating robust performance for standard VGA applications.

Q: Is this connector compliant with safety and environmental standards?

A: Yes, it's UL94V-0 rated for flammability resistance and RoHS compliant, ensuring suitability for environmentally conscious and safe electronic designs.

Q: What environmental conditions can this VGA connector withstand?

A: Engineered for use in challenging environments, it operates reliably over a temperature range of -55C to +105C and can be stored between -40C and +85C.
