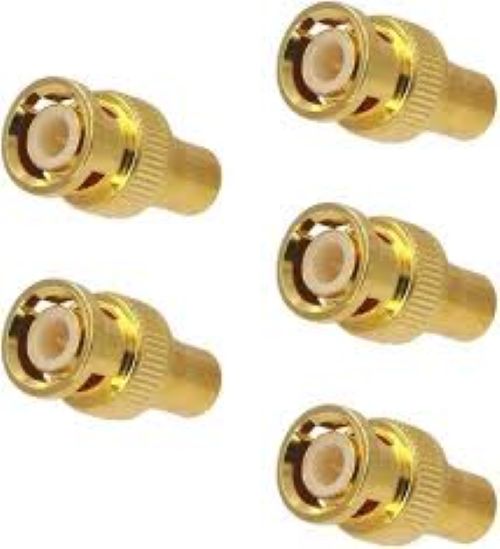

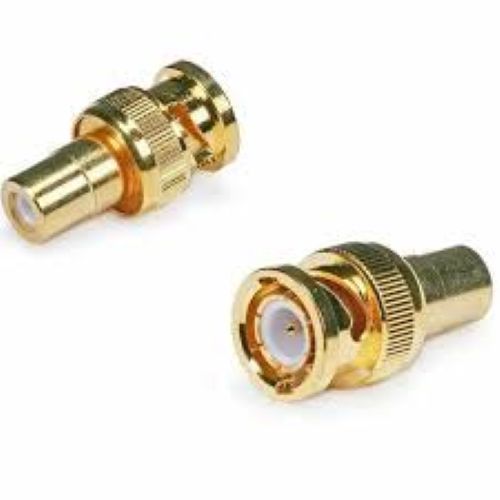

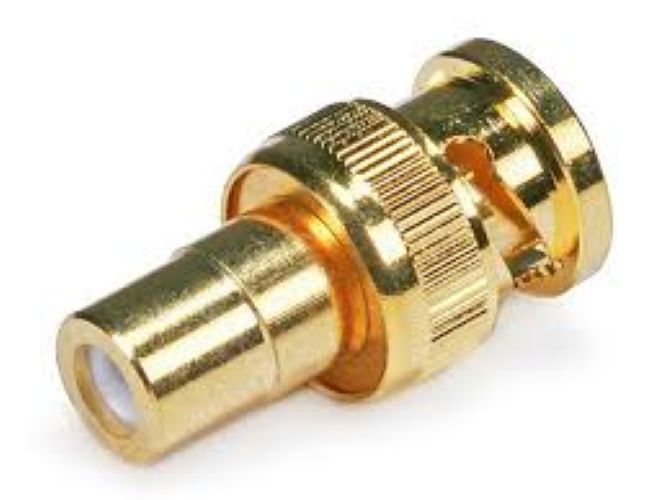

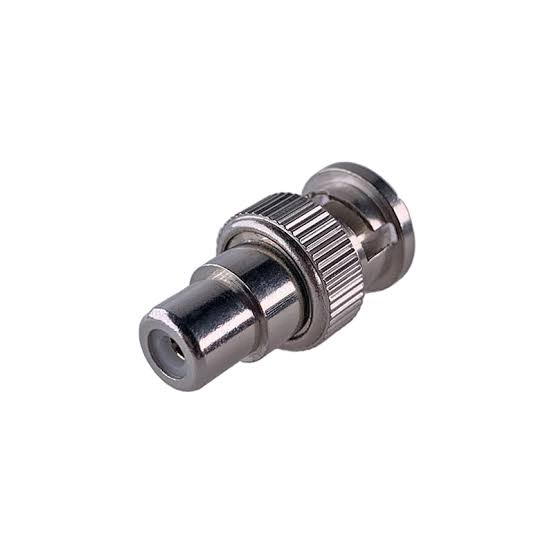

BNC To RCA Socket Coupler Gold Plated

Name: BNC To RCA Socket Coupler Gold Plated
Brand: CHERRY CONNECTRONICS
Price: 110.0 INR
Availability: InStock

Price 110.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BNC To RCA Socket Coupler Gold Plated Specification

Surface Finish
Gold plated

Overheating Protection
NO

Connector Type
Coupler (BNC Female to RCA Female)

Insulation Material
PTFE

Operating Temperature
-20C to +70C

Feature
Corrosion resistant, gold-plated finish, compact design

Shape
Cylindrical

Mounting Type
Inline, free-standing

Efficiency
High signal transmission efficiency

Humidity %
Up to 95% RH (non-condensing)

Product Type
BNC Female to RCA Female Socket Coupler

Application
Audio/Video signal conversion, CCTV, Security systems, Professional video equipment

Protection Level
Standard (no IP rating)

Frequency (MHz)
DC to 3 GHz

Rated Voltage
Up to 500V (max)

Output Type
RCA Female Socket

Color
Gold

Dimension (L*W*H)
Approx. 32mm x 12mm x 12mm

Weight
Approx. 5g (each)

Size
Standard size coupler

Input Voltage
Up to 500V

Connection Type
BNC Female to RCA Female

Material
Brass with gold plating

No Of Poles
Single pole

Durability
>500 mating cycles

Dielectric Withstanding Voltage
AC 1500V, 1 Min

Impedance
50 (nominal)

RoHS Compliance
Yes

Contact Resistance
5 m

Shell Material
Brass, gold-plated

Center Pin Material
Brass, gold-plated

Packaging Type
Bulk or polybag

About BNC To RCA Socket Coupler Gold Plated

Bnc To Rca Socket Coupler Gold Plated converts the Rca Cable to Bnc.A gold-plated BNC to RCA socket coupler is a compact RF/AV adapter used to bridge connections between professional BNC coaxial video systems and standard consumer RCA media components

High-Quality Material and Construction

Constructed entirely from gold-plated brass with a PTFE insulator, this BNC to RCA coupler guarantees durability and exceptional electrical conductivity. Its resistance to corrosion and tarnishing enhances both longevity and performance, meeting the needs of demanding professional environments.

Versatile Application in Signal Conversion

Ideal for audio/video conversions, this coupler is perfect for CCTV, security systems, and professional video equipment. The design supports a wide frequency range and high voltage, making it suitable for diverse installation scenarios and rapid, dependable signal transmission.

Compact and Convenient Design

Designed for inline, free-standing use, the coupler's cylindrical, compact shape allows for easy handling and quick connections in tight spaces. Its gold-plated surface finish and bulk or polybag packaging provide flexibility for installers, dealers, and wholesalers alike.

FAQ's of BNC To RCA Socket Coupler Gold Plated:

Q: How do I use the BNC to RCA Socket Coupler for signal conversion?

A: Simply connect the BNC female end to a compatible BNC cable or device, and the RCA female socket to an RCA cable or connector. This enables seamless conversion between BNC and RCA interfaces for audio or video signals.

Q: What types of equipment can benefit from this coupler?

A: This coupler is ideal for use in CCTV and security systems, professional audio and video devices, and any setup requiring conversion between BNC and RCA connectors. It supports efficient signal transfer across various frequencies and voltages.

Q: When should I consider using this coupler in my installation?

A: Use this coupler when integrating devices with differing connector types (BNC and RCA) or when upgrading existing audio/video setups without changing the primary cabling infrastructure. The coupler is suitable for both new installations and retrofit projects.

Q: Where can this BNC to RCA coupler be installed?

A: It is designed for inline, free-standing placement, making it suitable for control rooms, audiovisual racks, security equipment panels, and field installations. Its compact shape accommodates tight and standard connection spaces.

Q: What is the process for ensuring reliable and durable connections using this coupler?

A: Ensure both connectors are clean and properly aligned before inserting. Rotate gently to establish a firm connection-thanks to its gold-plated finish and robust brass construction, you can expect over 500 reliable mating cycles.

Q: What benefits does the gold-plated finish provide?

A: The gold-plated surface significantly enhances the coupler's resistance to corrosion and oxidation, which maintains low contact resistance and optimal signal clarity over time. It also increases overall durability, making it suitable for professional applications.
