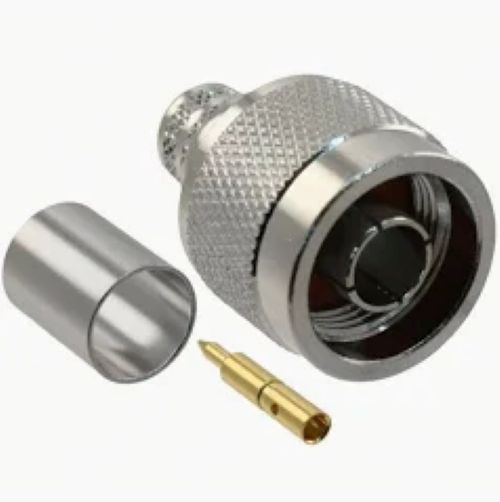

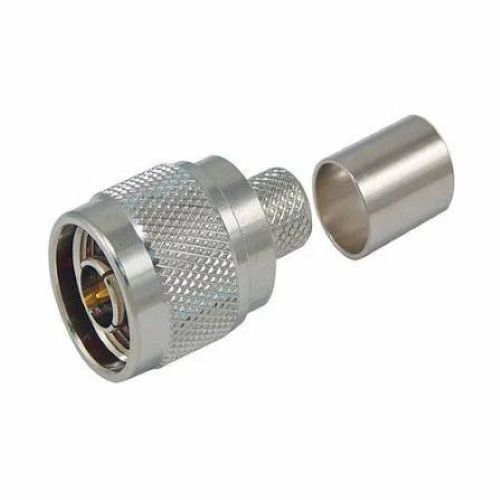

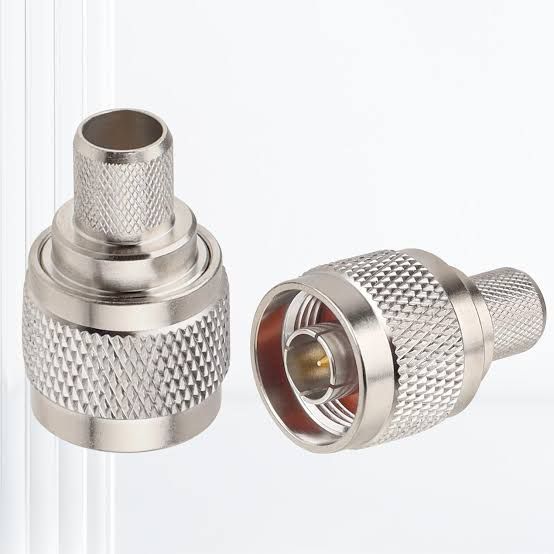

N MALE Coaxial Connector RG 213

Name: N MALE Coaxial Connector RG 213
Brand: CHERRY CONNECTRONICS
Price: 60.0 INR
Availability: InStock

Price 60.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

N MALE Coaxial Connector RG 213 Specification

Operating Temperature
-40C to +85C

Locking Type
Threaded coupling

Install Type
Crimp or clamp assembly

Armored Material
Not armored

Insulation
PTFE

Core Material
Copper

Rated Temperature
-40C to +85C

Number of Conductor
1

Impedance
50 Ohms

Core Number
Single core

Conductor Shape
Round

Tensile Strength
High, suitable for field and outdoor installations

Conductor Type
Solid

Diameter
Accepts 10.3mm OD cable (RG213)

Usage & Applications
RF, telecommunications, broadcast, laboratory connections

Features
Low loss, durable construction, easy installation, high frequency performance

Weight
Approx. 40g per connector

Cable Type
Coaxial RG 213

Dielectiric Strength
2,500 V RMS (typical for RG213 cable)

Product Type
Coaxial Connector

Length
Custom as per requirement

Voltage
Voltage rating typically up to 1500 V RMS

Insulation Material
PTFE

Application
Suitable for RF signal transmission, wireless communications, antenna connections, and test equipment

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-40C to +85C

Connector Color
Silver

Shield Material
Tinned Copper Braided

Jacket Color
Black

Dimension (L*W*H)
Standard dimensions for N Male RG213 connectors, varies with manufacturer

Color
Silver/Metallic

Material
Brass (body), nickel plated

Size
For RG213 cable (approximate connector size ~ 36mm length, 18mm diameter)

Mating Cycle
>500 cycles

Contact Resistance
Center conductor 1.5 m, Outer conductor 1.0 m

Cable Compatibility
RG213/U, RG8/U, and similar 10.3mm OD cables

Frequency Range
DC to 3 GHz (typical for N type connectors)

Body Finish
Nickel plated brass

RoHS Compliance
Yes

VSWR
Less than 1.3:1 up to 3 GHz (varies with assembly)

Contact Plating
Gold plated

Waterproof Rating
IP67 (with proper installation)

Insulation Resistance
>5000 M at 500V DC

About N MALE Coaxial Connector RG 213

A compatible coaxial connector ensures a seamless, high-performance connection between coaxial cables and devices such as TVs, modems, antennas, and professional radio equipment. Available in multiple types and impedance ratings to match your specific cable and application, these connectors are crucial for maintaining signal integrity and minimizing interference. Features at a glance

Universal fit: Connects coaxial cables like RG-6 and RG-59 to a variety of devices, depending on the connector type.
Optimal impedance: Choose between 50 Ohm for data transmission and wireless communication, or 75 Ohm for video signals, ensuring optimal signal transfer.
Durable materials: Often made from brass or other metals with corrosion-resistant finishes like nickel or gold for long-lasting use.
Easy installation: Available in simple screw-on, crimp, and compression types for secure and hassle-free attachment to cables.
Weatherproof options: Many types are designed for both indoor and outdoor use, protecting against moisture and signal loss.

Durable and Reliable RF Connections

Crafted with nickel-plated brass and gold-plated contact surfaces, the N MALE Coaxial Connector is designed to provide optimal electrical performance over hundreds of mating cycles. Its robust construction ensures lasting connections, making it a dependable choice for both indoor and outdoor RF setups.

Versatile and Waterproof Design

Thanks to its IP67 waterproof rating when correctly installed, this connector protects against moisture, dust, and environmental exposure. Its compatibility with RG213/U, RG8/U, and similar cables makes it versatile for a wide variety of RF cabling needs, suitable for professionals and installers alike.

FAQ's of N MALE Coaxial Connector RG 213:

Q: How do I ensure proper installation of the N MALE Coaxial Connector to maintain its waterproof IP67 rating?

A: To achieve the IP67 waterproof rating, make sure the connector is tightly assembled following manufacturer guidelines, especially when attaching compatible 10.3mm OD cables like RG213/U. A secure, well-seated connection is essential to protect against moisture ingress.

Q: What are the benefits of gold-plated contacts and nickel-plated body in this connector?

A: Gold-plated contacts provide excellent conductivity and corrosion resistance, while the nickel-plated brass body enhances structural integrity and shields against environmental stress, ensuring both electrical performance and long-term durability.

Q: When should I choose an N MALE Connector for my RF applications?

A: Opt for this N MALE Coaxial Connector when working with frequencies up to 3 GHz and cables like RG213/U or RG8/U for applications demanding low VSWR, waterproofing, and robust physical performance, including outdoor, broadcast, and cellular infrastructure.

Q: Where is this N MALE Coaxial Connector typically used?

A: This connector is utilized in RF communication systems, antennas, broadcasting setups, and industrial environments where reliable, weather-resistant cable terminations are necessary, supporting a diverse range of professional applications.

Q: What process should I follow for assembling the N MALE Connector with RG213 cable?

A: Begin by stripping the cable to the recommended dimensions, insert the cable into the connector, then solder or crimp the center conductor (as per design). Assemble the connector body, ensuring the outer shield is properly secured for electrical continuity and sealing.

Q: What are the advantages of the connector's high insulation resistance and low contact resistance?

A: High insulation resistance (>5000 M) minimizes leakage currents, assuring signal integrity, while low contact resistance ensures efficient signal transfer and reliable electrical connections even during extensive use and environmental exposure.
