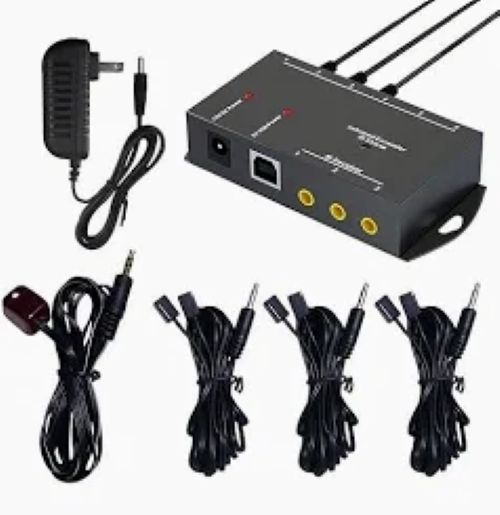

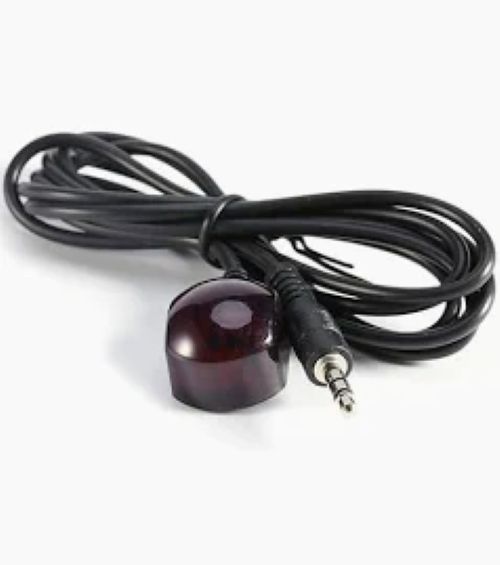

Set Up Box IR Hidden Extender (Remote Range Extender)

Name: Set Up Box IR Hidden Extender (Remote Range Extender)
Brand: CHERRY CONNECTRONICS
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Set Up Box IR Hidden Extender (Remote Range Extender) Specification

Operating Temperature
0C to +40C

Weight
Approx. 30 grams

Core Number
2

Install Type
Desktop/Surface mount with adhesive

Number of Conductor
2

Core Material
Copper

Insulation
PVC

Dielectiric Strength
>1kV

Rated Temperature
-10C to +55C

Cable Type
2-core USB powered IR cable

Conductor Shape
Round

Locking Type
No specific locking type

Features
Enables IR remote operation for hidden set top boxes, Plug-and-play, Stylish compact design, High sensitivity, Compatible with most IR-controlled devices, Long transmission range

Impedance
75 Ohms (typical for IR cable)

Tensile Strength
>30N

Usage & Applications
Hiding set top boxes, TV accessories behind closed doors or out of sight

Conductor Type
Stranded

Diameter
3.5 mm (cable)

Product Type
IR Remote Range Extender

Length
Cable length approx. 1.5 meters (IR cable)

Voltage
5V DC (powered via USB or set top box)

Insulation Material
PVC insulated cable

Application
Set Top Box and AV Equipment Remote Extension

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-20C to +70C

Connector Color
Black

Shield Material
Aluminum Mylar Foil

Jacket Color
Black

Dimension (L*W*H)
Approx. 45 mm (L) x 20 mm (W) x 15 mm (H) (IR receiver)

Material
ABS Plastic (main unit), PVC (cable)

Color
Black

Size
45 x 20 x 15 mm (main unit)

Signal Type
Infrared (38 kHz typical)

Power Source
USB powered (5V)

Input Interface
3.5mm mono audio jack

IR Wavelength
940 nm

Humidity Range
10%-90% RH non-condensing

Transmitter Type
IR LED

Mounting
3M adhesive backing or surface mount

Cable Included
Yes, factory-attached

LED Status
Red LED for active signal indication

Transmission Distance
Up to 10 meters

Receiver Type
IR photodiode

Environmental Compliance
RoHS compliant

Compatibility
Works with all major set top box brands

About Set Up Box IR Hidden Extender (Remote Range Extender)

IR Remote Control Extender Streamline your entertainment setup by concealing cable boxes, receivers, amplifiers, Roku, and other IR-controlled devices behind closed cabinet doors or walls. Say goodbye to cluttered shelves and open cabinets when watching TV. This cost-effective and efficient solution keeps your space tidy.

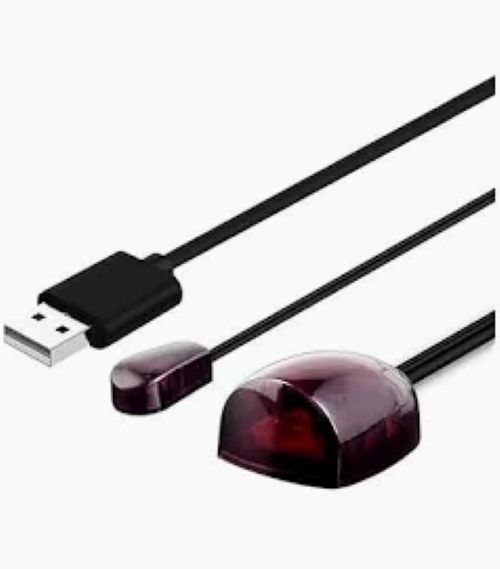

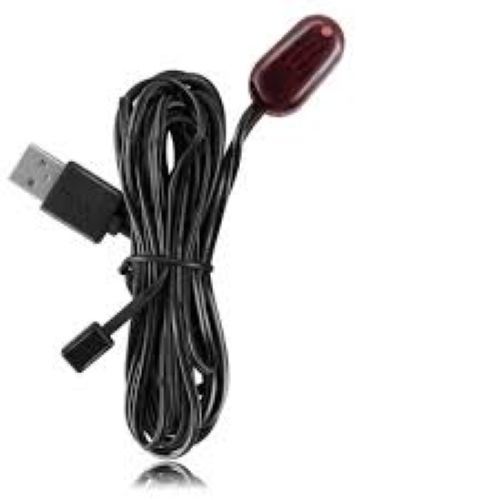

Easy to Use Plug the USB into your TV, set-top box, or any 5V wall adapter (adapter not included) for power. Mount the IR emitter near the device's sensor you wish to control using the adhesive backing. Place the IR receiver in a convenient location within the line of sight of your remote control, ensuring it's no more than 32 feet away. The adhesive circles on the back of the IR Tx and Rx cables ensure secure mounting.
Convenient Power Supply Powered via a USB cable, making it easy to connect to your TV's USB port or any USB wall charger for a consistent power supply without additional clutter.
Universal Compatibility This IR extender cable works with most A/V equipment featuring infrared sensors (not RF). The 60-degree IR receiver angle ensures optimal signal reception. Tested with thousands of IR devices, it is compatible with all IR-controlled equipment.
Extended RangeEnjoy uninterrupted control up to 32 feet away with a 180-degree receiving angle (60 degrees will be better), ensuring your remote commands are captured without delay or disruption.

Effortless Remote Operation for Hidden Devices

The IR Hidden Extender provides reliable signal transmission, allowing you to control set top boxes, AV equipment, or other IR-compatible devices kept out of sight. Its high-sensitivity design ensures uninterrupted operation even through cabinet doors or media centers, preserving your room's clean aesthetic without compromising on convenience.

Simple Installation and Universal Compatibility

Featuring plug-and-play functionality, this extender is USB powered and requires no additional software or configuration. The included 1.5-meter factory-attached IR cable with adhesive backing enables flexible mounting options. With support for all major set top box brands and devices with standard IR remotes, integration is fast and effortless.

FAQ's of Set Up Box IR Hidden Extender (Remote Range Extender):

Q: How does the Set Up Box IR Hidden Extender work?

A: The extender transmits infrared remote signals from your remote control to hidden set top boxes or AV equipment. It uses an IR photodiode receiver to capture your remote's signal, then re-emits it via an IR LED transmitter, allowing remote operation even through closed doors or behind furniture.

Q: What devices is this IR Hidden Extender compatible with?

A: This device is compatible with all major set top box brands and most IR-controlled AV equipment. It connects via a 3.5mm mono audio jack, making it suitable for a wide variety of standard infrared remote-control systems.

Q: Where should I install the IR Hidden Extender?

A: Install the IR receiver in a location with a clear line of sight to your remote control, such as near your TV. Use the 3M adhesive backing or surface mount to secure it. The transmitter should be placed near the hidden set top box's IR sensor to ensure reliable signal transfer.

Q: What is the process for setup and installation?

A: Simply connect the extender using the factory-attached IR cable and power it via the USB port (5V). Attach the receiver to a visible spot using the adhesive or place it on a surface. Plug the 3.5mm jack into your set top box if required. No software installation or configuration is necessary-just plug and play.

Q: When is this IR Hidden Extender most beneficial?

A: It is most useful when your set top box or AV equipment is hidden inside cabinets or behind walls, obstructing the remote control's direct signal. The extender ensures uninterrupted remote access without exposing equipment, ideal for minimalist or organized setups.

Q: What is the maximum remote range provided by this extender?

A: The IR Hidden Extender supports a transmission distance of up to 10 meters, ensuring strong and reliable remote operation throughout most room layouts.

Q: What are the advantages of using this extender in my setup?

A: Key benefits include decluttering your entertainment area, maintaining aesthetic appeal, and ensuring reliable remote access to hidden devices. Additionally, it is easy to install, highly sensitive, RoHS compliant, and works seamlessly with most IR-controlled devices.
