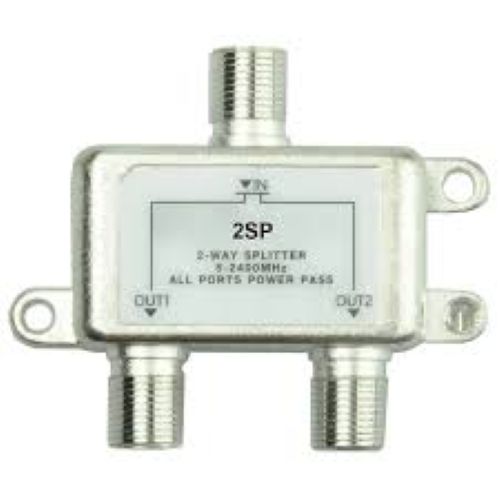

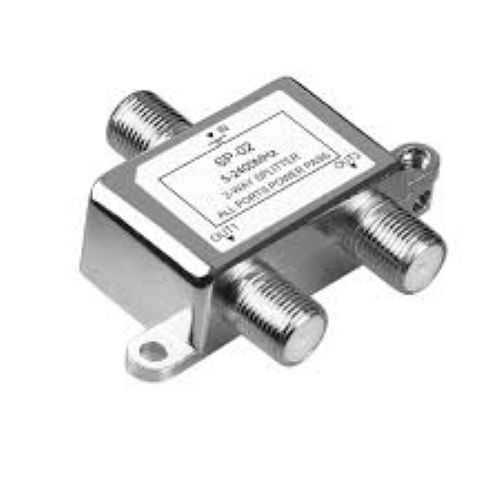

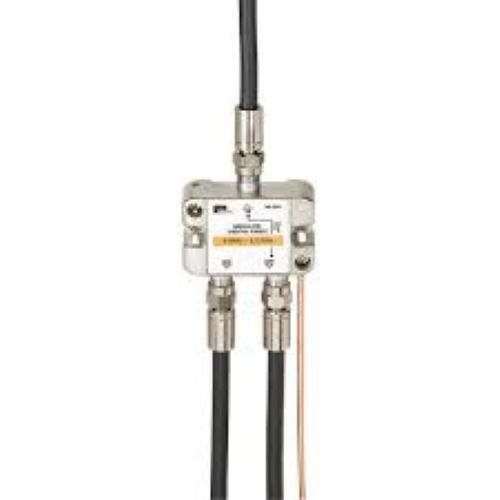

Name: Digital Cable Splitter
Brand: CHERRY CONNECTRONICS
Price: 60.0 INR
Availability: InStock

Price 60.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Digital Cable Splitter Specification

Connector Type
F-Type Female

IP Rating
Not IP Rated (Indoor Use Recommended)

Efficiency
Approx. 95%

Shape
Rectangular/Box

Feature
Low Signal Loss, Corrosion Resistant Housing

Operating Temperature
-20C to +60C

Humidity %
Relative Humidity up to 90% (Non-Condensing)

Surface Finish
Nickel Plated or Polished Metal

Insulation Material
Plastic (Internal)

Mounting Type
Screw Mount/Surface Mount

Overheating Protection
None (Passive)

Power Factor
Not Applicable (Passive device)

Product Type
Digital Cable Splitter

Application
Splitting cable TV/Signal distribution

Protection Level
Basic (Not designed for high protection)

Frequency (MHz)
5-2400 MHz

Rated Voltage
Max 24V DC Pass

Energy Consumption
Negligible / Passive Device

Output Type
Dual Output (2-Way Splitter)

Color
Silver/Metallic Grey

Dimension (L*W*H)
Approx. 5.5 x 3.2 x 2 cm

Weight
Approx. 30-50 g

Input Voltage
DC Pass-through (Typically up to 24V)

Phase
Single Phase

Size
Standard Mini/Compact Size

No Of Poles
2 (Typical for 2-way splitter)

Material
Zinc Alloy or Die-Cast Metal

Connection Type
Coaxial Cable (F-type connectors)

Isolation
22dB Min

DC Power Pass
Available on one port

Impedance
75 Ohms

Insertion Loss
3.5dB Max

Shielding
High Shielding to prevent signal leakage

Maintenance
Maintenance Free

Number of Outputs
2

Return Loss
14dB Min

RoHS Compliance
Yes (Varies by manufacturer)

About Digital Cable Splitter

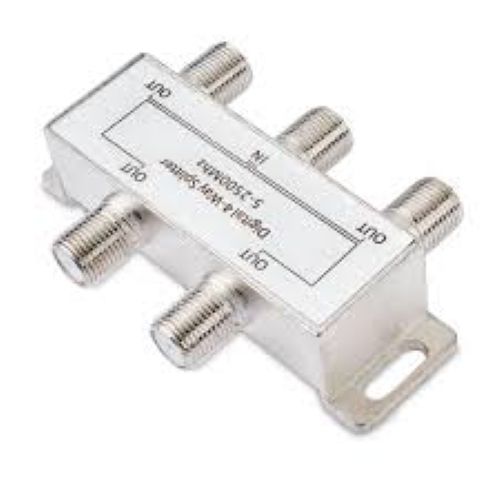

A digital cable splitter, or coaxial splitter, divides a single coaxial cable signal into two or more separate output signals. Unlike old analog splitters, modern digital models are designed for higher frequencies and better performance to handle HD TV signals, high-speed internet, and satellite TV with minimal signal loss. Passive coaxial splittersThese splitters are unpowered and use internal components to divide the signal's power evenly among the output ports. While they introduce some signal loss (attenuation), high-quality models minimize this, making them suitable for most home and office installations. NEWCARE Digital 4-Way Coaxial Cable SplitterA passive, die-cast zinc splitter that distributes one input signal to four outputs. It supports a wide frequency range (52400 MHz) and is compatible with both RG59 and RG6 coaxial cables.

Efficient Dual Output Splitting

Experience seamless signal distribution with a 2-way splitter designed for homes and commercial setups. Its high shielding technology minimizes signal leakage, while the low insertion loss keeps your connections reliable. Suitable for both TV and broadband applications, this splitter ensures each device receives a clear signal.

Built for Durability and Safety

Constructed with corrosion-resistant zinc alloy or die-cast metal, the splitter withstands everyday wear and maintains conductivity. The housing is nickel-plated for extra durability, making it ideal for long-term indoor installation. The device is RoHS compliant, supporting environmental standards with quality assurance.

Versatile and Maintenance Free

Compatible with any setup utilizing F-type coaxial connectors, this splitter fits easily into compact spaces thanks to its mini design. It operates passively, requiring no power or maintenance, making it a hassle-free solution for cable management. DC power pass on one port is handy for installations that require remote device power.

FAQ's of Digital Cable Splitter:

Q: How do I install the 2-way digital cable splitter in my setup?

A: Installation is straightforward. Connect the input port to your source (such as a cable TV line) using an F-type coaxial cable. Then, attach your two output devices to the splitter's labeled output ports. For DC-powered devices, ensure you use the port marked for DC power pass.

Q: What benefits does this splitter offer compared to standard splitters?

A: This splitter features high shielding against signal leakage, a low insertion loss (max 3.5dB), and DC power pass on one port, ensuring minimal signal degradation and compatibility with powered equipment. The corrosion-resistant metal body assures durability and stable performance.

Q: When should I use the DC power pass feature?

A: Use the DC power pass port when your installation includes a device that requires power via the coaxial line, such as a mast amplifier. Only one output port supports this function, so connect powered devices accordingly.

Q: What kinds of signals and frequencies can this splitter handle?

A: It supports a wide frequency range from 5 MHz to 2400 MHz, making it suitable for digital TV, satellite, and broadband internet signals over 75 Ohm coaxial cables.

Q: Where is this splitter best suited for use?

A: The splitter is recommended for indoor environments, such as residential homes, offices, or commercial setups. Although the housing is durable, it is not IP rated, so outdoor or wet conditions should be avoided.

Q: How does the splitter prevent signal loss and interference?

A: High-quality internal shielding and precision zinc alloy or die-cast metal construction prevent significant signal loss and block electromagnetic interference, ensuring a clear and efficient signal distribution.

Q: Is any maintenance or special operating procedure required?

A: No maintenance is necessary. As a passive device with corrosion-resistant components and efficient design, simply install it as per standard guidelines, and it will provide stable operation over its service life.
