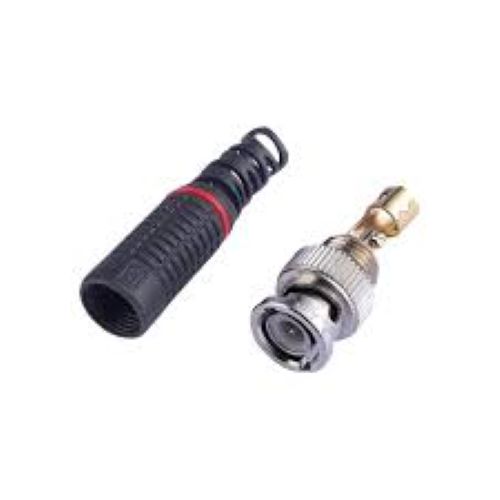

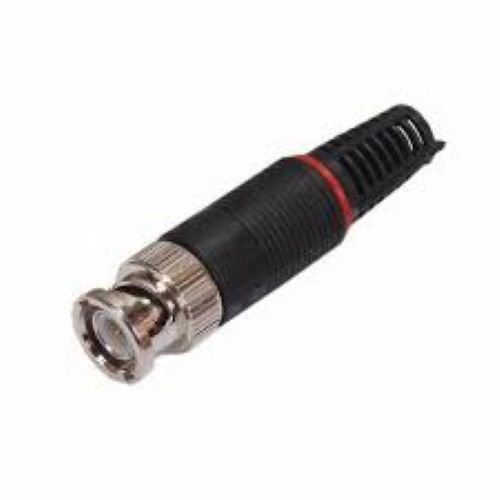

BNC Connector DLX Gold

Name: BNC Connector DLX Gold
Brand: CHERRY CONNECTRONICS
Price: 13.0 INR
Availability: InStock

Price 13.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BNC Connector DLX Gold Specification

Tensile Strength
High mechanical strength for secure connection

Dielectiric Strength
1000V RMS

Diameter
13mm

Cable Type
Coaxial

Usage & Applications
Professional video equipment, LAN, CATV, Radio, Test & Measurement

Features
Gold-plated contacts for superior signal transfer and corrosion resistance, Precision crafted for secure fit, Low signal loss, Durable and long-lasting

Core Material
Copper

Conductor Type
Solid or Stranded

Number of Conductor
Single

Install Type
Screw-on / Crimp Type

Core Number
Single

Weight
Approx. 12g

Impedance
50 Ohm / 75 Ohm (optional)

Insulation
PTFE

Operating Temperature
-40C to +85C

Rated Temperature
-40C to +85C

Locking Type
Bayonet Twist Lock

Conductor Shape
Round

Product Type
DLX Gold BNC Connector

Length
Standard, Customizable lengths available

Voltage
Up to 500V

Insulation Material
PTFE (Polytetrafluoroethylene)

Application
CCTV, Audio/Video Transmission, Test Equipment, Broadcast, Radio Frequency Applications

Conductor Material
Copper

Jacket Material
PVC (Polyvinyl Chloride)

Storage Temperature
-40C to +85C

Connector Color
Gold

Shield Material
Brass, Nickel-plated, with Gold finish

Jacket Color
Black, Custom options available

Dimension (L*W*H)
Approx. 39mm (L) x 13mm (D)

Color
Gold & Black

Material
Brass Body with Gold Plating

Size
Standard BNC

Frequency Range
Up to 4 GHz

Gender
Male (Plug)

Contact Resistance
Center Contact 1m, Outer Contact 1.5m

Finish
Gold-plated Contacts, Nickel-plated Body

Mating Cycles
500 Cycles

Center Contact Plating
Gold-plated

Mounting Type
Cable Mount

Insulation Resistance
5,000 M

RoHS Compliance
Yes

BNC Connector DLX Gold Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About BNC Connector DLX Gold

Bnc dlx connector used for cctv installation,video analog output ,also used for wireless antena. The 0026 Male BNC (Bayonet NeillConcelman) Deluxe Gold Connector is a high-grade, straight-oriented coaxial cable terminal primarily deployed in CCTV camera security networks, analog video feeds, and wireless radio frequency (RF) antennas. The defining asset of this specific model variant is its gold-plated brass contact pin, which actively halts environmental oxidation and ensures maximum signal integrity over extended operational distances.

Superior Signal Integrity

Equipped with gold-plated contacts and a nickel-plated brass body, the BNC Connector DLX Gold ensures minimal signal loss and exceptional resistance to corrosion. Precision crafting supports solid, long-lasting connections, advantageous for professional video, audio, and RF setups requiring robust and stable transmission.

Built for Professional Durability

Designed to withstand 500 mating cycles and harsh environments, this connector performs reliably between -40C and +85C. The PTFE insulation and secure bayonet lock mechanism further reinforce durability, making it ideal for demanding applications in broadcast, CCTV, and laboratory settings.

Versatile and Customizable Applications

Available for crimp or screw-on mounting, this cable mount male plug supports both solid and stranded coaxial conductors. Its versatility provides compatibility with a wide range of systems, and customizable options ensure it meets specific installation needs for various professional applications.

FAQ's of BNC Connector DLX Gold:

Q: How is the BNC Connector DLX Gold installed onto coaxial cables?

A: The BNC Connector DLX Gold supports both screw-on and crimp-type installations for easy and secure attachment to solid or stranded coaxial cables. Simply prepare your cable, insert it into the connector, then use the appropriate method-crimping or screwing-to ensure a robust and stable connection.

Q: What environments and temperatures can this connector operate in?

A: This connector is built for use in demanding conditions, operating reliably between -40C and +85C. Its durable construction and PTFE insulation make it suitable for outdoor, industrial, and professional video broadcast environments.

Q: When should I choose the 50 Ohm or 75 Ohm impedance version?

A: Select the 50 Ohm version for RF, data, and test equipment applications, while the 75 Ohm version is optimal for broadcast, video, and CATV systems. Your choice depends on the required transmission characteristic of your specific application.

Q: Where is the BNC Connector DLX Gold commonly used?

A: This connector is ideal for use in professional video and audio equipment, CCTV systems, LAN networking, CATV distribution, radio setups, and laboratory test and measurement instruments due to its durability and high signal fidelity.

Q: What benefits does the gold-plated contact offer?

A: Gold-plated contacts provide superior conductivity, which ensures minimal signal loss, excellent corrosion resistance, and long-lasting performance, making the connector suited for high-quality signal transmission in critical environments.

Q: Can I order the BNC Connector DLX Gold in custom cable lengths or configurations?

A: Yes, custom options are available. You can request specific cable lengths, connector configurations, and conductor types to fit your project or installation needs. Reach out to your supplier or dealer for available customizations.
