Gold Plated Banana Connector

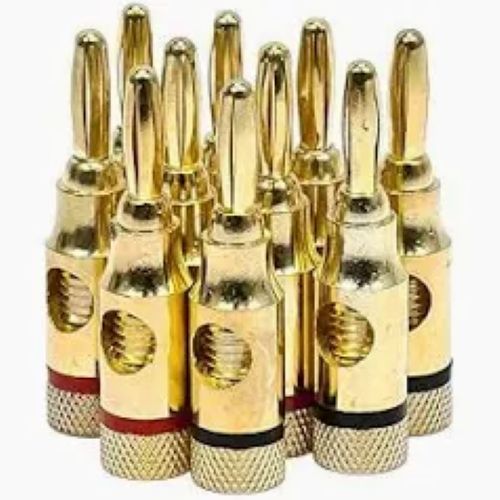

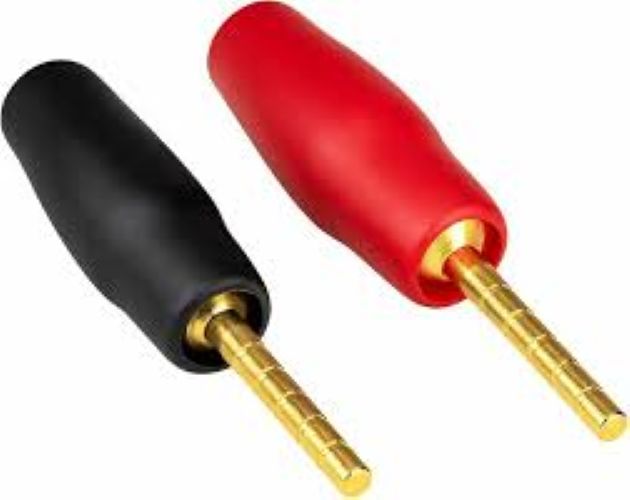

Name: Gold Plated Banana Connector
Brand: CHERRY CONNECTRONICS
Price: 80.0 INR
Availability: InStock

Price 80.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Gold Plated Banana Connector Specification

Tensile Strength
High durability metal construction

Usage & Applications
Audio, speaker, laboratory, test equipment connections

Insulation
No external insulation

Core Number
1 (per connector)

Cable Type
Speaker wire, test lead

Conductor Shape
Banana (round) pin

Locking Type
Push-fit with knurled barrel for grip

Conductor Type
Solid

Core Material
Copper

Install Type
Screw lock/Compression fitting

Features
Corrosion resistant, High conductivity, Secure fit, Easy installation

Dielectiric Strength
N/A (no dielectric insulation)

Impedance
Unspecified (depends on cable used)

Diameter
4mm pin (standard)

Weight
Approx. 10g per piece

Number of Conductor
Single

Rated Temperature
-20C to 70C

Operating Temperature
-20C to 70C

Product Type
Banana Connector Plug

Length
Approx. 40 mm

Voltage
Up to 30V (typical for banana connectors)

Insulation Material
None (bare metal-type)

Application
Speaker cables, test leads, audio/video equipment, laboratory equipment

Conductor Material
Copper core, Gold plated

Jacket Material
Aluminum (barrel/grip part)

Storage Temperature
-40C to 80C

Connector Color
Gold (pin), Silver (body)

Jacket Color
Silver

Dimension (L*W*H)
Approx. 40 mm x 12 mm x 12 mm

Color
Gold and Silver

Material
Gold plated copper (pin), Aluminum alloy (barrel)

Size
Compatible with 4mm banana sockets

Mounting Type
Cable mount, solder/screw-type termination

Compatibility
Standard 4mm banana jacks/sockets

Surface Finish
24K Gold plating (to prevent oxidation)

Durability
Rated for over 500 insertions

RoHS Compliance
Yes

Contact Resistance
Less than 0.01 Ohm

Max Wire Size Supported
Up to 4mm2

Package Contents
2 x Banana Connectors

Connector Type
Male

About Gold Plated Banana Connector

Gold Plated Banana Connector specially designed for professional audio.A gold-plated banana connector (or plug) is a single-wire electrical connector used to terminate speaker wires, patch cords, and testing probes

Precision Engineering for High Fidelity Connections

This Gold Plated Banana Connector combines superior conductivity with long-lasting resistance to corrosion, thanks to its substantial 24K gold finish over a solid copper core. Ensuring less than 0.01 Ohm of contact resistance, it's ideal for consistently clear audio signals, laboratory measurements, or critical test setups. The robust aluminum housing with a knurled barrel guarantees a secure yet easy-to-install experience every time.

Effortless Installation and Universal Compatibility

Designed for universal use, these connectors support up to 4mm2 wire and fit standard 4mm banana jacks. The cable-mount design with solder or screw-type terminations accommodates a range of installation preferences, making them perfect for speaker wires, test leads, and electronic lab equipment. Easy push-fit and compression fitting ensure a secure and reliable connection with minimal effort.

Tough, Reliable, and RoHS Compliant

Engineered for durability, each connector is rated for over 500 insertion cycles without compromising performance. The RoHS-compliant construction means it's both safe to use and environmentally conscious. Suitable for operating temperatures from -20C to 70C, these connectors maintain high performance across varied conditions, ensuring peace of mind in demanding environments.

FAQ's of Gold Plated Banana Connector:

Q: How do I install the gold plated banana connectors onto my speaker wire or test leads?

A: Installation is simple: strip the wire end, insert it into the connector barrel, then either solder it for a permanent join, or use the built-in screw compression for a tool-free secure fit. The knurled aluminum barrel provides excellent grip during installation.

Q: What benefits does the 24K gold plating provide for these connectors?

A: The 24K gold plating offers excellent corrosion resistance, preventing oxidation that can degrade signal quality over time. It also reduces contact resistance (less than 0.01 Ohm), ensuring high conductivity and reliable signal transfer even in demanding environments.

Q: Where can these banana connectors be used effectively?

A: These connectors are suitable for speaker cables, test leads, audio/video equipment, laboratory instruments, and other applications that use a standard 4mm banana plug interface. They are designed for both professional and DIY electronics projects.

Q: What wire sizes and types do these connectors support?

A: They support wire sizes up to 4mm2, accommodating most common speaker wires and test leads. The cable mount design with solder/screw-type termination ensures compatibility with both stranded and solid core wires.

Q: Are these connectors durable for frequent use in laboratory or workshop settings?

A: Yes, they are rated for over 500 insertions, with high tensile strength thanks to the gold plated copper pin and sturdy aluminum barrel. The robust build ensures reliable performance even after extensive use.

Q: Do these connectors comply with safety and environmental standards?

A: Absolutely, these connectors are RoHS compliant, indicating they meet strict standards for environmental friendliness and user safety.

Q: What is included in the package and do the connectors have insulation?

A: The package includes two banana connectors per set. They are bare-metal type with no external insulation but use high-quality materials to ensure user safety and performance.
