Angular Metal Phono Jack

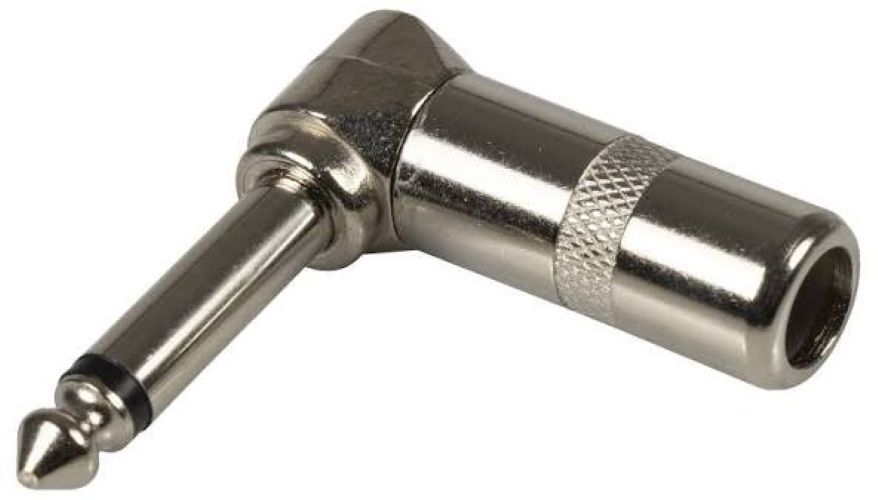

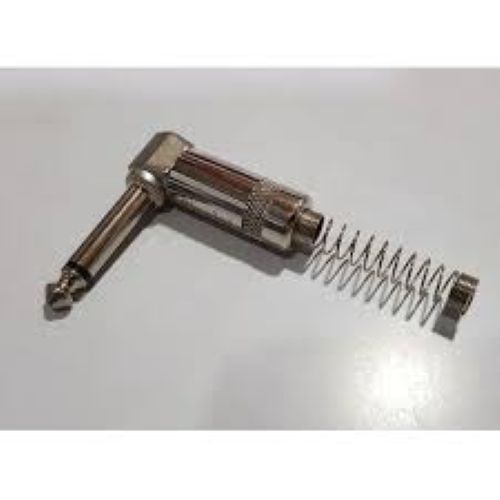

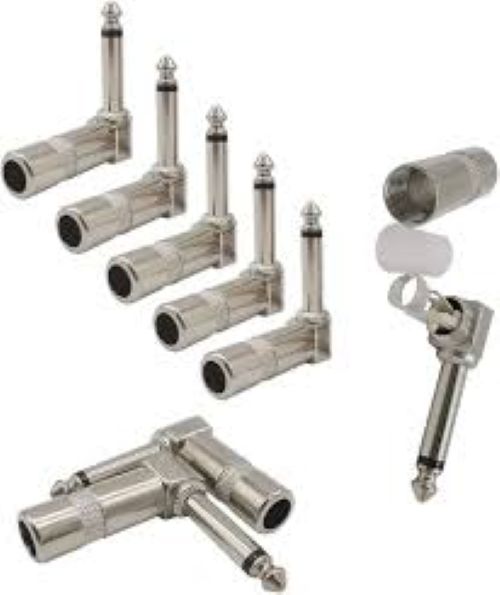

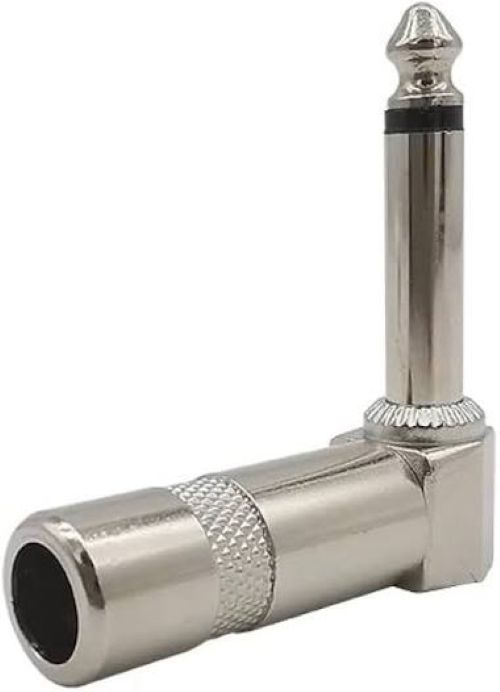

Name: Angular Metal Phono Jack
Brand: CHERRY CONNECTRONICS
Price: 50.0 INR
Availability: InStock

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Angular Metal Phono Jack Specification

Features
Right angle/Angular design, Durable metal body, Easy installation, Compact size, Good conductivity

Conductor Shape
Round

Number of Conductor
2 (Tip and Sleeve)

Usage & Applications
Guitar cables, patch cables, pro audio, recording studio equipment

Install Type
PCB mount or cable soldering

Weight
Approx. 15g

Core Material
Metal (usually brass or copper alloy)

Locking Type
No mechanical lock

Conductor Type
Mono/TS (Tip-Sleeve)

Dielectiric Strength
N/A (not applicable)

Tensile Strength
High (for typical handling)

Rated Temperature
-10C to +50C (typical)

Operating Temperature
-10C to +50C

Insulation
Plastic sleeve at base of tip

Impedance
Low (suitable for audio connections)

Core Number
1 signal, 1 ground

Cable Type
N/A (Adapter/Jack only)

Diameter
6.35 mm (Plug diameter)

Product Type
Angular Metal Phono Jack / 1/4 TS plug (Right Angle)

Length
N/A (Adapter type, not a cable)

Voltage
N/A (Passive audio connector)

Insulation Material
Plastic/Fiber Insulation Sleeve (typically inside the connector)

Application
Audio equipment, Musical instruments, Amplifiers, Mixers, Sound Boards

Conductor Material
Brass/Nickel plated (commonly used)

Jacket Material
N/A (Metal shell, no jacket)

Storage Temperature
-20C to +60C

Connector Color
Silver

Shield Material
Metal body acts as shielding

Jacket Color
Silver (metal finish)

Dimension (L*W*H)
Approx. 50 x 13 x 13 mm

Color
Silver metallic

Material
Nickel plated metal/brass

Size
1/4 inch (6.35 mm) phono plug

Mounting Type
Right Angle/Angular

RoHS Compliance
Yes (lead-free solder, where specified)

Minimum Order Quantity
1 piece

Contact Plating
Nickel plated

Compatibility
Standard 1/4 inch audio jacks

Finish
Polished metal/nickel finish

Connector Type
Phono (1/4" TS) Jack Adapter

Current Rating
Low current, signal level only

Gender
Male

Type
Mono (TS)

About Angular Metal Phono Jack

Phono Jack for connecting Mic etc. An angular metal phono jack (commonly referred to in pro audio as a 90-degree or right-angle 1/4 inch TS/TRS plug) is a heavy-duty connector designed for tight spaces on stage boxes, instrument patches, and mixing consoles. The right-angle footprint reduces cable strain by allowing the wire to exit parallel to the equipment panel, preventing the accidental bending or snapping common with straight connectors.

Superior Build Quality and Durable Finish

Manufactured with nickel-plated metal and a sturdy brass core, this right-angle phono jack offers excellent durability for frequent handling. The polished finish not only enhances its appearance but also provides resistance against corrosion, ensuring long-term performance in professional audio setups.

Perfect for Versatile Audio Connections

Engineered as a mono (TS) 1/4 inch (6.35 mm) jack, this adapter is compatible with a wide range of audio equipment, including musical instruments, amplifiers, mixers, and recording studios. Its compact, angular design is well-suited for tight spaces and pedalboards where straight connectors may not fit.

Easy Installation and Reliable Performance

Designed for quick PCB mount or direct cable soldering, this jack simplifies assembly for technicians and hobbyists. The metal body acts as an effective shield against interference, while the high-quality plastic insulation maintains signal clarity, making it a wise choice for any professional or DIY project.

FAQ's of Angular Metal Phono Jack:

Q: How do I install the Angular Metal Phono Jack?

A: This jack is designed for easy installation through either PCB mounting or direct cable soldering. Simply connect your cable to the tip and sleeve terminals, ensuring proper soldering for best conductivity and signal integrity.

Q: What type of devices are compatible with this adapter?

A: The Angular Metal Phono Jack fits standard 1/4 inch mono (TS) audio sockets. Typical applications include electric guitars, amplifiers, mixers, synthesizers, patch bays, and studio recording equipment.

Q: When should I use a right-angle phono jack instead of a straight one?

A: A right-angle or angular design is ideal when you need to manage cable routing in confined spaces, such as pedalboards or behind racks, or to relieve cable strain and prevent accidental disconnections.

Q: Where is the best place to use this jack in an audio setup?

A: This jack is best implemented at any point requiring a reliable, space-saving mono connection, particularly in professional audio environments like studios, live performance setups, or home recording stations.

Q: What benefits does the nickel-plated metal body offer?

A: Nickel plating provides enhanced durability, resistance against corrosion, and superior signal conductivity. This ensures consistent audio performance, even with frequent use and plug/unplug cycles.

Q: How does the jack ensure good signal quality and reliability?

A: The jack's brass core, nickel plating, and secure solder points deliver excellent conductivity, while the metal body offers effective shielding against electromagnetic interference for clear signal transmission.

Q: Is the Angular Metal Phono Jack environmentally friendly?

A: Yes, the product is RoHS-compliant and uses lead-free solder where specified, making it a safer and environmentally conscious choice for modern electronic assembly.
