Micro Usb Connector

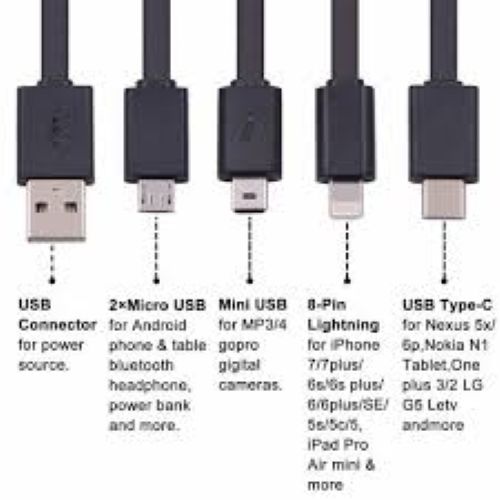

Name: Micro Usb Connector
Brand: CHERRY CONNECTRONICS
Price: 20.0 INR
Availability: InStock

Price 20.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Micro Usb Connector Specification

Rated Temperature
-20C to 85C

Features
Compact size, high durability, reliable data transfer

Impedance
90 Differential Pair

Operating Temperature
-20C to 70C

Weight
Approx. 2g

Usage & Applications
Mobile Device Charging and Data Sync

Conductor Shape
Flat/Straight Contacts

Tensile Strength
Adequate for typical plug/unplug cycles

Install Type
PCB Mount/Solder Type

Insulation
Plastic/Polymer Insert

Cable Type
Not Applicable (Connector only)

Locking Type
Friction/Push Fit

Conductor Type
Solid

Number of Conductor
5 (Standard Micro USB Pinout)

Dielectiric Strength
AC 250V/min

Product Type
Micro USB Connector

Length
Standard connector (no cable, approx. 7mm)

Voltage
5V DC (typical)

Insulation Material
Plastic/Polymer Body

Application
Mobile phones, tablets, data transfer, charging

Conductor Material
Copper Alloy

Storage Temperature
-40C to 85C

Connector Color
Metallic Silver

Shield Material
Nickel-plated Steel

Dimension (L*W*H)
Approx. 7mm x 8mm x 3mm

Material
Plastic/Metal Hybrid

Color
Metallic Grey

Size
Micro

Contact Plating
Gold Plated

Contact Resistance
30m

Mounting Type
Surface Mount/Through Hole

Insertion Life
Up to 10,000 cycles

RoHS Compliance
Yes

Humidity Endurance
Up to 85% RH

Current Rating
Up to 1.8A

Pin Pitch
0.65 mm

Flame Retardant Grade
UL94V-0

About Micro Usb Connector

Usb to open cable available in all length copper material black colour usb a type male connector . A USB (Universal Serial Bus) Connector is the global industry standard for plugging in, powering, and transferring data between computers, mobile devices, peripherals, and industrial controllers. Over the years, these connectors have evolved across multiple physical form factors and data speed generations to handle faster power delivery and lightning-quick file transfers.

Compact, High-Endurance Design

Engineered for mobile integration, this Micro USB connector has a 7mm standard length and weighs only 2g, making it an excellent fit for slim devices. Its friction-fit locking, flat copper alloy contacts, and gold plating deliver consistent connections-even after 10,000 cycles, ensuring longevity in rigorous environments.

Superior Safety and Compliance

The connector uses UL94V-0 flame retardant-rated housing and is RoHS compliant. Its insulation and nickel-plated steel shielding guard against heat, moisture (up to 85% RH), and electrical faults, providing safety and reliability in high-usage or mission-critical applications.

Versatile Mounting and Application

Designed for both surface mount and through-hole PCB applications, this Micro USB connector is easily integrated into manufacturing workflows. Its compact size and standard Micro USB pinout (five conductors) support universal use for charging and data transfer in mobile devices, making it ideal for manufacturers, distributors, and OEMs.

FAQ's of Micro Usb Connector:

Q: How is the Micro USB Connector typically installed onto circuit boards?

A: The connector can be mounted using either surface mount or through-hole methods, offering design flexibility for integration onto a variety of PCBs during manufacturing.

Q: What benefits does the gold-plated contact feature provide?

A: Gold-plated contacts reduce contact resistance, enhance conductivity, and offer superior corrosion resistance, which ensures reliable data transfer and power delivery over the connector's lifespan.

Q: Where can this connector be used?

A: It is ideal for mobile phones, tablets, and other consumer electronics that require dependable charging and data sync, making it popular among manufacturers, assemblers, and repair services.

Q: What is the process for ensuring reliable connection throughout the product's lifespan?

A: With a rated insertion life of up to 10,000 cycles and flat, solid copper alloy contacts, the connector maintains a firm, consistent bond, even after repeated usage.

Q: When should this connector be considered over other types?

A: Choose this connector when you require a compact, robust solution for frequent plug/unplug cycles and need compliance with strict safety and environmental standards.

Q: How does the Micro USB Connector handle humid environments?

A: The connector is tested to endure humidity levels up to 85% RH, making it suitable for use in conditions that demand resilience against moisture exposure.

Q: What are the main usage scenarios for this connector?

A: It is predominantly used for device charging and high-speed data transfer applications, especially in portable electronics where space and durability are critical.
