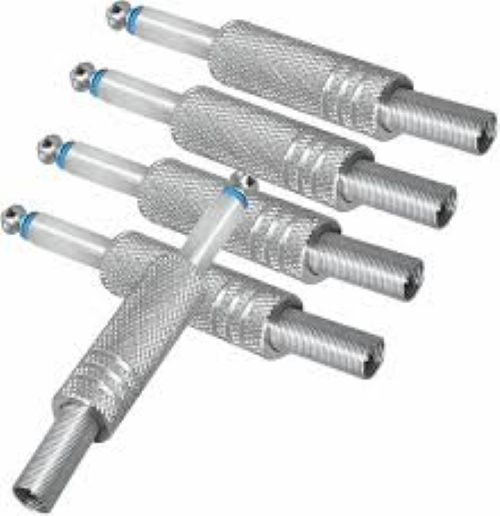

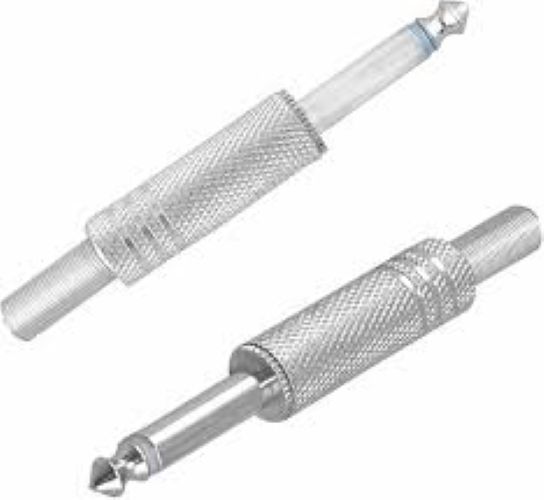

P 38 Mono Jack Metal With Spring

Name: P 38 Mono Jack Metal With Spring
Brand: CHERRY CONNECTRONICS
Price: 40.0 INR
Availability: InStock

Price 40.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

P 38 Mono Jack Metal With Spring Specification

Conductor Type
Mono

Core Material
Brass

Features
Durable metal body, spring cable strain relief, mono audio transmission, easy soldering terminals, secure connection

Dielectiric Strength
500V AC/minute

Impedance
Typically 6.35 mm mono impedance

Number of Conductor
2

Cable Type
Compatible with shielded/unshielded audio cables

Rated Temperature
-20C to +60C

Diameter
7 mm (approximately)

Usage & Applications
Guitars, amplifiers, mixers, studio equipment

Tensile Strength
High, due to spring reinforcement

Weight
Approx. 10 grams

Locking Type
Standard friction fit

Install Type
Solder Terminals

Insulation
Plastic/Fiber Sleeve

Core Number
Single (Mono)

Operating Temperature
-20C to +60C

Conductor Shape
Round Pin

Product Type
P-38 (6.35mm) Mono Jack

Length
Standard length: 42 mm

Voltage
Up to 30V (signal level)

Insulation Material
Plastic/Fiber sleeve

Application
Audio equipment connection, guitars, mixers, amplifiers

Conductor Material
Brass/Nickel-plated Brass

Jacket Material
N/A (connector only)

Storage Temperature
-25C to +80C

Connector Color
Metallic Silver

Shield Material
Nickel-Plated Brass

Dimension (L*W*H)
Approx. 42 mm x 7 mm x 7 mm

Material
Metal (Brass, Nickel plated)

Color
Metallic Silver

Size
6.35 mm (1/4 inch) jack

Surface Finish
Nickel Plated

Contact Resistance
<30m

Mounting
Cable Mount / In-line

Solderability
Easy Solder Terminals

Overall Length (with spring)
~52 mm

Plug Type
Straight with Spring Strain Relief

Connection Type
Mono 2 Pole

Environmental Compliance
RoHS Compliant

Shock Resistance
Standard for audio connectors

Current Rating
2A max

About P 38 Mono Jack Metal With Spring

P 38 mono jack for pro audio. metal body with spring. Neutrik nimbo. A P-38 Mono Jack Metal with Spring (technically a 6.35mm or 1/4-inch TS audio plug) is a heavy-duty, single-channel connector commonly used to terminate pro-audio equipment and musical instrument cables

Durable Construction for Reliable Performance

Built with a metal (nickel-plated brass) housing and reinforced with a spring for cable strain relief, this mono jack is designed to withstand frequent plugging and unplugging, along with physical stress. Its robust design enhances tensile strength, making it perfect for professional audio environments where reliability is crucial.

Versatile Audio Connectivity

Compatible with both shielded and unshielded audio cables, the P 38 Mono Jack Metal With Spring offers seamless integration with guitars, amplifiers, mixers, and other studio equipment. The easy solder terminals simplify the installation process, making this connector suitable for a wide range of audio applications.

Engineered for Safety and Quality

The jack meets RoHS environmental compliance and features dielectric strength up to 500V AC/minute, ensuring electrical safety. With low contact resistance and a secure friction-fit locking mechanism, users can depend on consistent, clear audio transmission in any professional or personal audio setup.

FAQ's of P 38 Mono Jack Metal With Spring:

Q: How do I install the P 38 Mono Jack Metal With Spring onto an audio cable?

A: To install, strip your audio cable, then solder the wire ends to the jack's easy solder terminals. Ensure secure connections to both the conductor and ground terminals. Slide the metal and spring covers into place for strain relief, ensuring durability and proper functioning.

Q: What audio equipment is this mono jack suitable for connecting?

A: This connector is ideal for use with guitars, amplifiers, mixers, and studio audio equipment, as well as any device requiring a standard 6.35 mm mono plug. Its robust design is suitable for both professional and home audio applications.

Q: When should I choose this mono jack over other types of connectors?

A: Opt for the P 38 Mono Jack Metal With Spring when you need a durable, reliable, and easy-to-install connector for mono audio signals, especially where secure cable mounting and long-term use are important, such as on stage or in studios.

Q: Where can this connector be installed or used?

A: It is designed for cable mounting and versatile usage in studios, venues, rehearsal spaces, and home audio systems. The in-line/cable mount design allows you to attach it directly to compatible audio cables quickly.

Q: What process ensures reliable and secure audio transmission with this jack?

A: The jack features a spring strain relief to minimize cable stress, nickel-plated brass conductors for low contact resistance, and easy solder terminals for robust electrical connections, ensuring consistent signal quality.

Q: How does the spring strain relief benefit the lifespan of the connector?

A: The integrated spring strain relief protects internal solder joints and reduces cable wear and tear, significantly extending the overall lifespan and maintaining stable audio performance during repeated use.

Q: Is this product environmentally and electrically safe for use?

A: Yes, the jack is RoHS compliant for environmental standards and tested for dielectric strength up to 500V AC/minute, providing both environmental and electrical safety assurances during operation.
