HDMI VGA LAN Audio Wall Plate

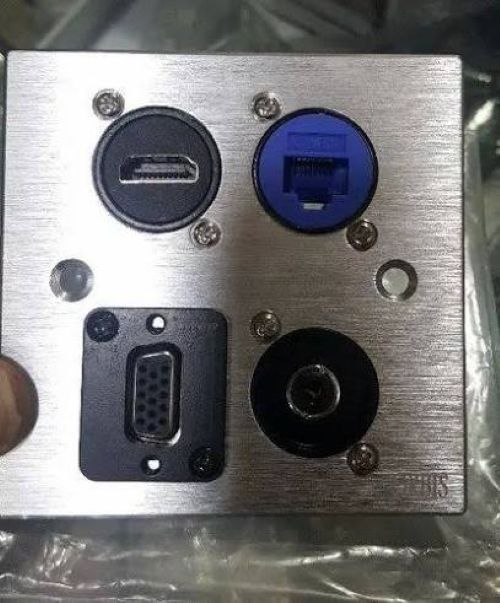

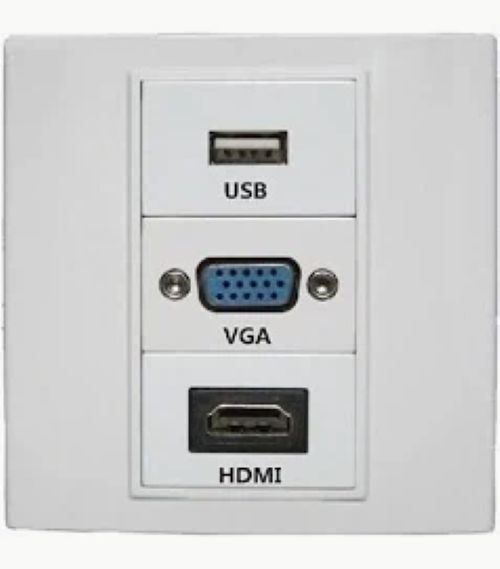

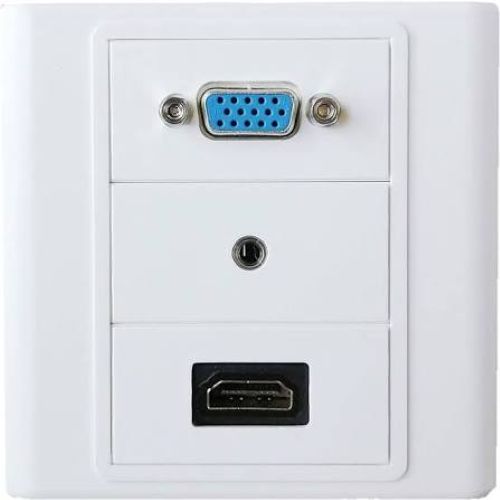

Name: HDMI VGA LAN Audio Wall Plate
Brand: CHERRY CONNECTRONICS
Price: 1450.0 INR
Availability: InStock

Price 1450.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

HDMI VGA LAN Audio Wall Plate Specification

Mounting Type
Wall Mounted / Flush Mounted

Shape
Square

IP Rating
IP20 (indoor use only)

Insulation Material
ABS Plastic

Feature
Supports HD display, easy installation, universal compatibility

Connector Type
HDMI (Type A), VGA (15-pin), USB (Type A)

Operating Temperature
0C to 50C

Humidity %
85% RH (non-condensing)

Surface Finish
Matte

Product Type
Wall Plate for Multimedia Connectivity

Application
Audio/Video/Data transmission in offices, conference rooms, homes

Protection Level
Medium (for indoor installation)

Frequency (MHz)
50-60Hz (for passive transmission)

Rated Voltage
Up to 250V AC (passive support)

Energy Consumption
Passive device (no energy consumption)

Output Type
HDMI, VGA, USB (female ports)

Color
White

Dimension (L*W*H)
86mm x 86mm x 10mm

Weight
Approx. 120g

Phase
Single

Input Voltage
Signal level (passive through connectors)

Size
Standard wall plate (86mm x 86mm)

No Of Poles
3 (HDMI, VGA, USB)

Material
Flame-retardant ABS plastic

Connection Type
Screw Terminal & Solder Connections (rear side)

Cable Management
Supports concealed wiring for neat installations

Fire Resistance
Yes

Contacts Material
Nickel plated brass

Number Of Modules
3 gangs (HDMI, VGA, USB)

Panel Cutout Size
Standard for single-gang box

Panel Thickness
3mm

Environmental Compliance
RoHS Compliant

Compatibility
Compatible with all standard HDMI, VGA, and USB devices

HDMI VGA LAN Audio Wall Plate About

HDMI-VGA-LAN-Audio wall plate is a multi-port multimedia outlet panel that consolidates digital video, analog video, network data, and sound interfaces into a single, clean in-wall connection point

Effortless Connection and Compatibility

Easily integrate HDMI, VGA, and USB devices with this all-in-one wall plate. Designed for universal compatibility, it accommodates laptops, projectors, displays, and more. The passive transmission design ensures seamless signal transfer without the need for external power, making it a versatile solution for audio, video, and data needs in diverse environments.

Neat Installation and Durable Design

Enjoy clean and organized cable management with support for concealed wiring. The wall plate is crafted from flame-retardant, environmentally-friendly ABS plastic and features nickel-plated brass contacts for lasting performance. Its standard square size fits single-gang electrical boxes, matching a variety of interior decors while prioritizing safety and function.

Reliable Performance for Multiple Applications

With an IP20 rating for indoor use, robust protection features, and operation in a wide range of temperatures and humidity, this wall plate is ideal for offices, conference rooms, and home media setups. It supports HD display output, facilitating seamless transmission of audio, video, and data signals across various compatible devices.

FAQ's of HDMI VGA LAN Audio Wall Plate:

Q: How do I install the HDMI VGA LAN Audio Wall Plate?

A: Installation is straightforward: simply mount the plate onto a standard single-gang electrical box, connect your HDMI, VGA, and USB cables to the rear screw terminals or solder points, then secure the faceplate. Concealed wiring options ensure a neat finish.

Q: What devices are compatible with this wall plate?

A: The wall plate supports all standard HDMI, VGA (15-pin), and USB (Type A) devices, including laptops, monitors, projectors, desktops, printers, and AV equipment, making it suitable for multiple audio, video, and data transmission applications.

Q: When should I use this wall plate?

A: Use this product during new installations or renovations where you need organized, reliable, and durable connections for HDMI, VGA, and USB devices, such as in offices, conference rooms, schools, and home theaters.

Q: Where can this wall plate be installed?

A: It is suitable for indoor settings and should be wall or flush-mounted in places like meeting rooms, classrooms, living rooms, or any space that requires accessible audio/video/data ports with concealed routing.

Q: What is the process for wiring the connections?

A: After mounting the plate, feed the necessary HDMI, VGA, and USB cables through the wall. Use the rear screw terminals or solder connection points to attach the cables securely. Ensure proper matching with female outputs on the wall plate.

Q: What are the benefits of using this wall plate?

A: This wall plate delivers a professional, clutter-free appearance, simplifies multi-device connectivity, supports HD display output, ensures fire safety, and offers universal compatibility-all in a durable, RoHS-compliant design.

Q: Does the wall plate require external power or consume energy?

A: No, this is a passive device. It transmits signals directly through the connectors without any external power supply or active components, resulting in zero energy consumption.
